The Ladeeda® concrete base is developed for easy one-man installation of Ladeeda® & Easee Base pedestals in soft ground to reduce installation time.

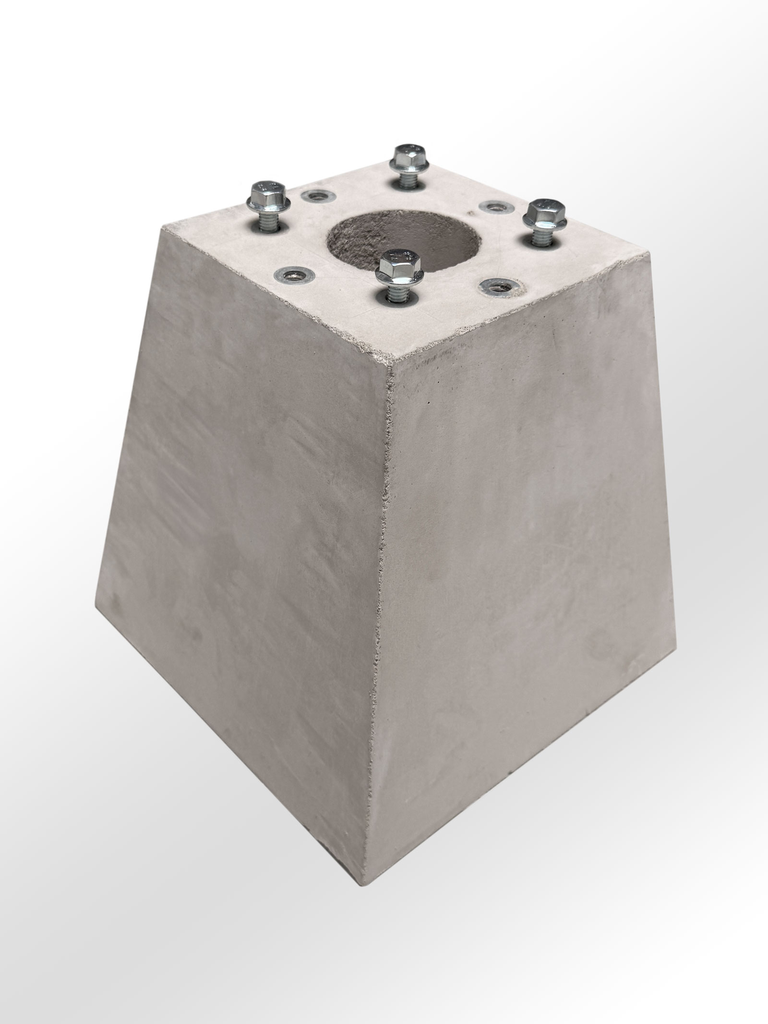

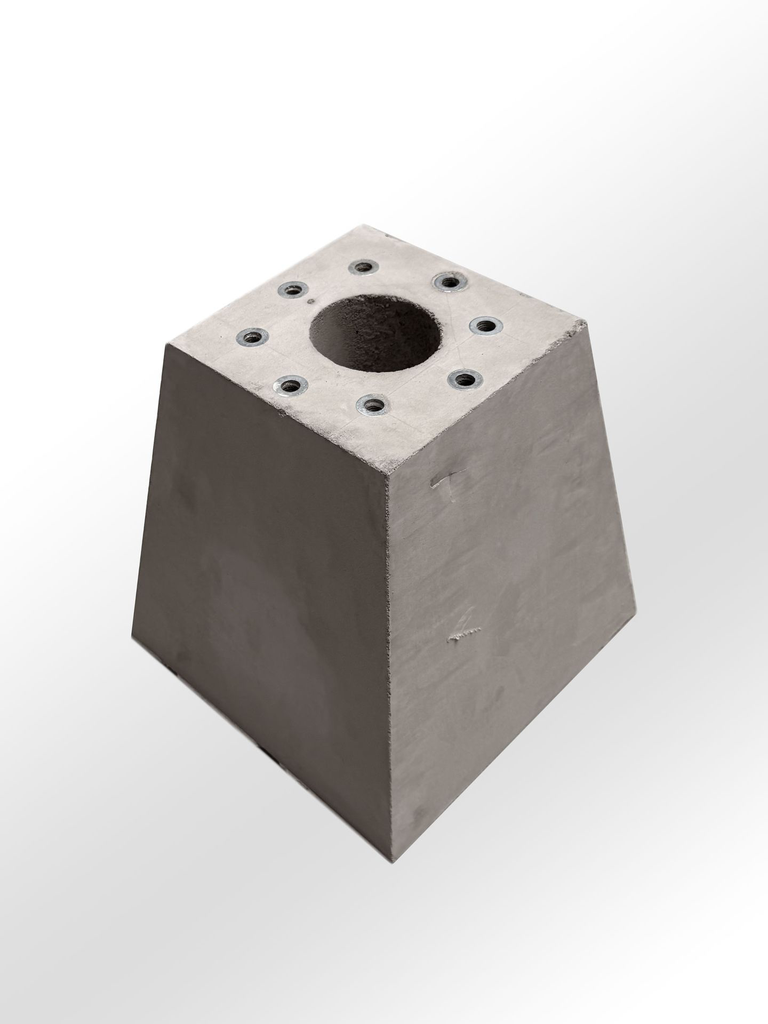

Our concrete base for installation in soft ground is made especially for our Ladeeda pedestal and is made compatible with the Easee Base pedestals. It is equipped with a cable entry (diameter 60mm), 8x M8 threaded inserts and 4x hex flange bolts, on which the Ladeeda footplate can easily be mounted.
The pedestal has a weight of +/- 17 kg and should be secured with a bag of concrete, depending on the surface.
With our concrete base you don't need an extra mounting kit, you can mount the Ladeeda charging station directly on it.
Specifications
- Weight: +/- 17kg
- Dimensions: 14x14 / 22x22 / H22cm
- Should be secured in soft ground with a bag of concrete, depending on the surface.
- Cable entry diameter: 60mm
- x M8 threaded inserts and 4x hexagon flange bolts included
